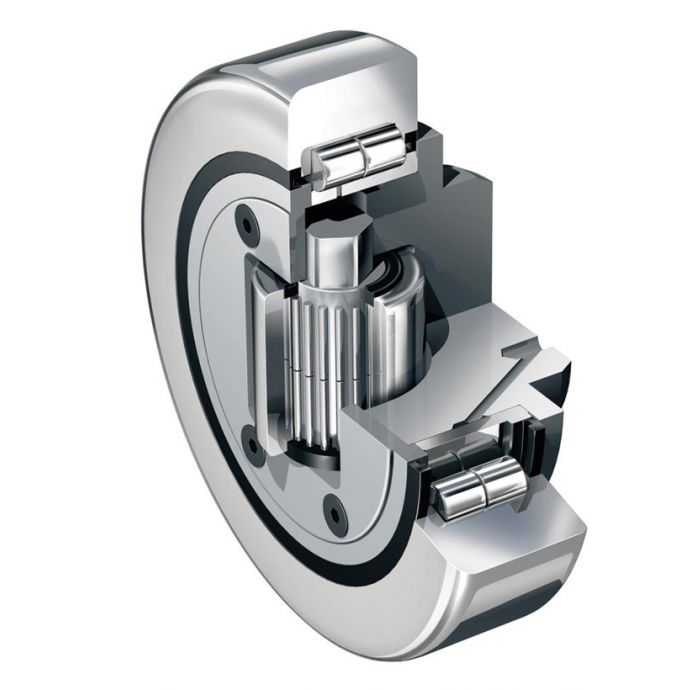

Jumbo WINKEL-Bearing axial Bearing adjustable

Jumbo WINKEL-Bearing axial Bearing adjustable

  • The adjustement of dimension (A) is obtained by turning the bolt of the side guide roller.
  • The bolt is eccentric and has 8 adjustement positions.
  • The radial bearing can be relubricated.
HK$0.00
Out of stock
  • The adjustement of dimension (A) is obtained by turning the bolt of the side guide roller.
  • The bolt is eccentric and has 8 adjustement positions.
  • The radial bearing can be relubricated.
Description

型号 部件号 D mm T mm d -0.05 mm H mm h mm B mm A mm S mm FR kN FA kN C kN CO kN CA kN COA kN Rpm Weight Kg Flange plates Profiles
max
4.085 201.049.000 180 124 100 95,7 - 98,7 76,3 - 79,3 57,3 6,5 - 9,5 60 76,00 22,80 207 243 73 83 100 11,5 AP 90-Q Standard 8 Nb
4.089 201.050.000 165 113 80 69,0 - 72,0 53,0 - 56,0 40,0 5,0 - 8,0 50 41,71 13,91 213 388 85 133 120 9,20 AP 89-Q Standard 10
4.09 201.051.000 190 124 100 84,5 - 87,5 64,5 - 67,5 48,0 6,5 - 9,5 60 58,00 19,40 266 500 100 180 100 10,60 AP 90-Q Standard 16
4.091 201.052.000 220 146 110 94,5 - 97,5 74,5 - 77,5 58,0 6,5 - 9,5 75 84,00 28,00 326 681 138 257 90 17,30 AP 91-Q Standard 18
4.092 201.053.000 250 168 120 102,0 - 105,0 77,0 - 80,0 60,0 7,0 - 10,0 75 101,50 33,90 369 748 138 257 75 23,90 AP 92-Q Standard 28
4.093 201.054.000 280 188 150 119,5 - 123,5 89,5 - 93,5 72,0 7,5 - 11,5 90 139,40 46,50 489 1066 182 488 50 36,00 AP 93-Q Stand. 36 + 42
4.094 201.055.000 320 218 150 135,0 - 139,0 110,0 - 114,0 85,0 10,0 - 14,0 90 192,00 57,70 542 1370 210 422 50 50,00 AP 93-Q Standard 50
More Information
More Information
Model number N/A
Material Bearing Steel
Characteristics The bolt is eccentric and has 8 adjustment positions
Color N/A
