Precision WINKEL Type PR Bearing adjustable with OILAMID* insert
Precision WINKEL Type PR Bearing adjustable with OILAMID* insert
*Oilamid is a high resistant, self lubricant Polyamide
Less clearance between bearing and profile

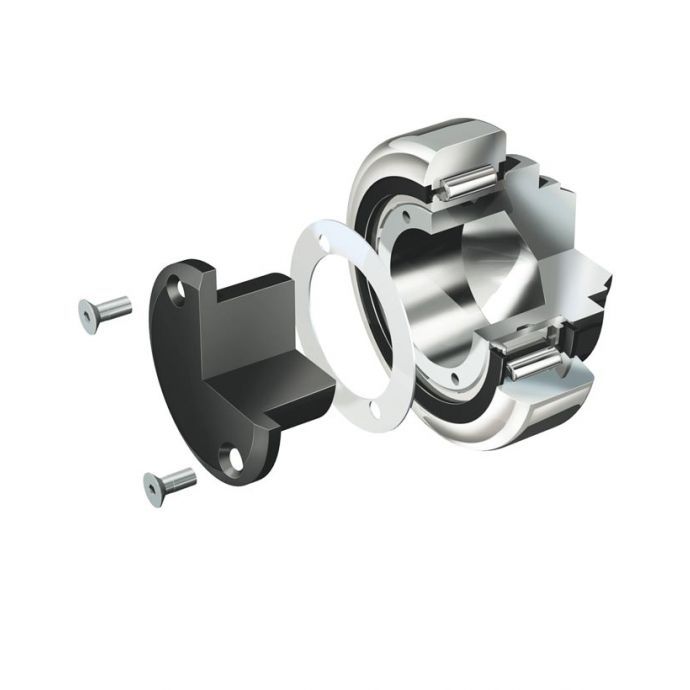

The adjustment of dimension (A) is obtained by means of an insert positioned between the main body of the bearing and the oilamid insert
Shims with 0.5 and 1.0 mm thickness are availiable
Max. adjusting + 2mm
HK$0.00
Out of stock
*Oilamid is a high resistant, self lubricant Polyamide
Less clearance between bearing and profile
The adjustment of dimension (A) is obtained by means of an insert positioned between the main body of the bearing and the oilamid insert
Shims with 0.5 and 1.0 mm thickness are availiable
Max. adjusting + 2mm
| Type | Article no. | D mm | T mm | d -0.05 mm | H* mm | h* mm | B mm | A mm | S mm | r mm | FR kN | FA kN | C kN | CO kN | R/pm max | Weight Kg | Flange plates | Profiles |
| PR 4.072 P | 200.011.003 | 64,8 | 42 | 30 | 43,0 | 33,0 | 20,0 | 5,5 | ø 25 | 3 | 9,40 | 4,0 | 31,0 | 35,5 | 900 | 0,49 | AP0 AP0-Q | PR 0 Nb |
| PR 4.073 P | 200.013.005 | 73,8 | 48 | 35 | 48,0 | 40,0 | 23,0 | 6,5 | ø 33 | 4 | 11,30 | 6,7 | 45,5 | 51,0 | 800 | 0,74 | AP1 AP1-Q | PR 1 Nb |
| PR 4.074 P | 200.013.004 | 81,8 | 54 | 40 | 50,5 | 39,5 | 23,0 | 7,0 | ø 40 | 4 | 11,72 | 7,2 | 48,0 | 56,8 | 700 | 0,94 | AP2 AP2-Q | PR 2 Nb |
| PR 4.076 P | 200.015.003 | 92,8 | 59 | 45 | 61,0 | 48,0 | 30,0 | 7,0 | ø 45 | 3 | 20,47 | 8,9 | 68,0 | 72,0 | 600 | 1,57 | AP3.1 AP3-Q | PR 3 Nb |
| PR 4.0784 P | 200.067.000 | 111,8 | 71 | 60 | 69,0 | 55,0 | 31,0 | 8,0 | ø 60 | 5 | 21,68 | 14,4 | 81,0 | 95,0 | 500 | 2,63 | AP4 AP4-Q | PR 4 Nb |
| PR 4.079 P | 200.154 .000 | 127,8 | 80 | 60 | 75,5 | 59,5 | 37,0 | 8,0 | ø 70 | 5 | 30,92 | 38,4 | 110,0 | 132,0 | 500 | 3,90 | AP4 AP4-Q | PR 5 Nb |
| PR 4.080 P | 200.155 .000 | 153,8 | 103 | 60 | 81,0 | 62,0 | 45,0 | 8,0 | ø100 | 5 | 54,02 | 41,6 | 151,0 | 192,0 | 400 | 6,50 | AP6 AP6-Q | PR 6 Nb |
| PR 4.085 P | 201.049.010 | 184,8 | 124 | 100 | 99,2 | 79,8 | 57,3 | 10,0 | ø112 | 5 | 76,00 | 41,6 | 207,0 | 243,0 | 200 | 12,50 | AP90-Q | PR 8 Nb |
| Model number | N/A |
|---|---|
| Material | Bearing Steel, Oilamid |
| Characteristics | Bearing adjustable with OILAMID* insert |
| Color | N/A |
